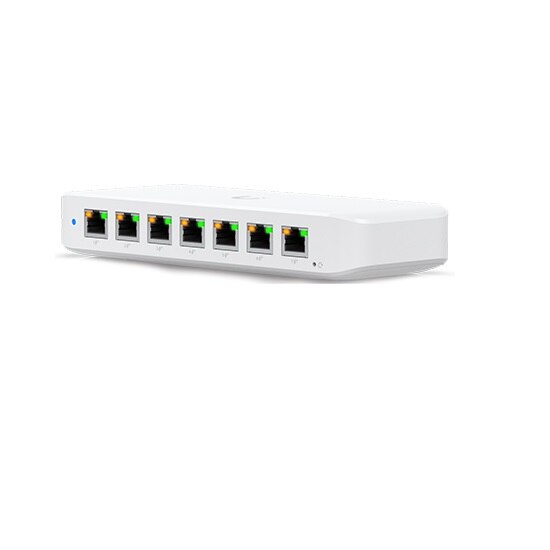

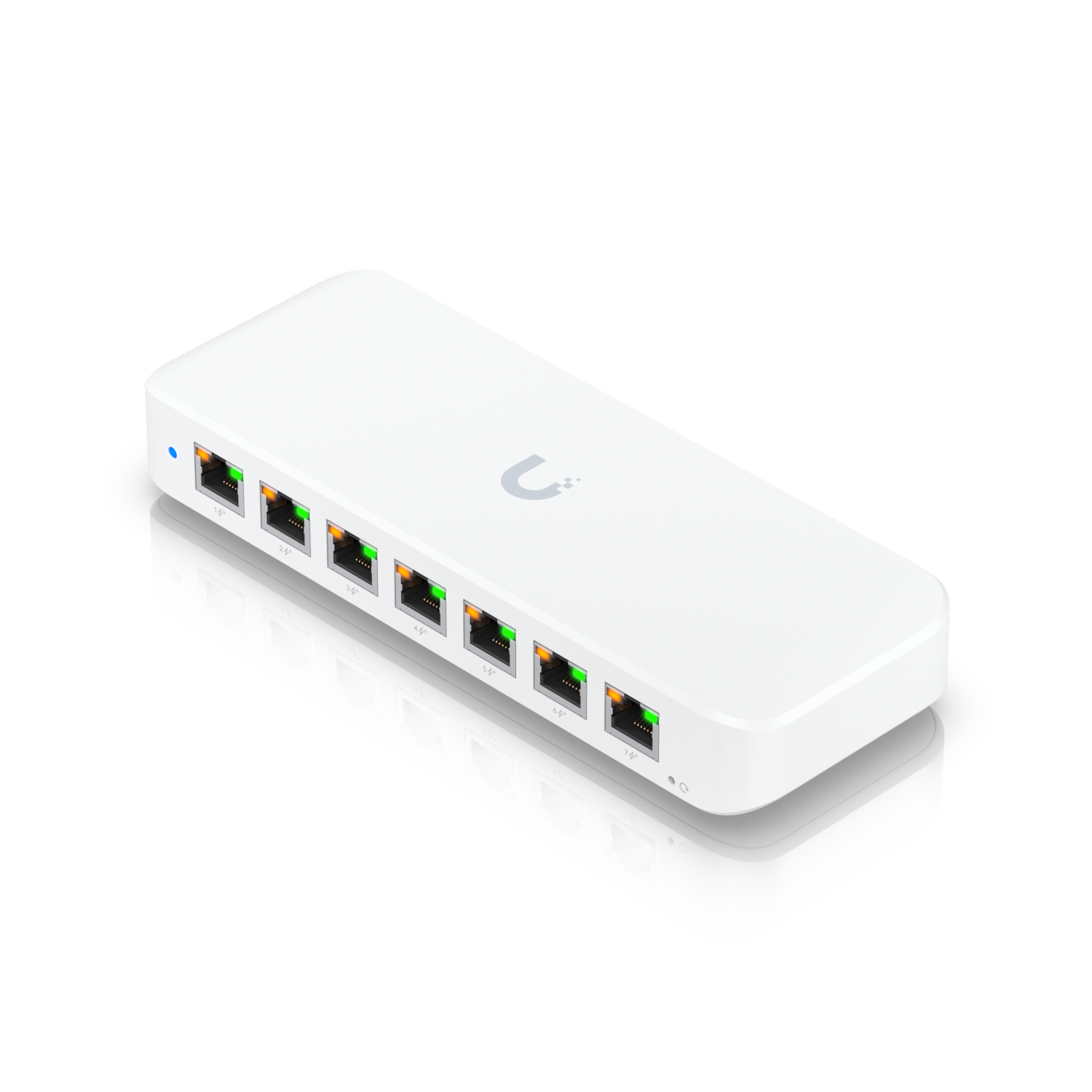

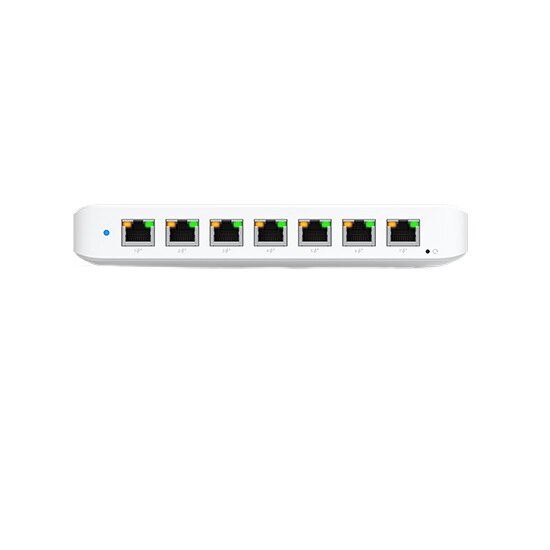

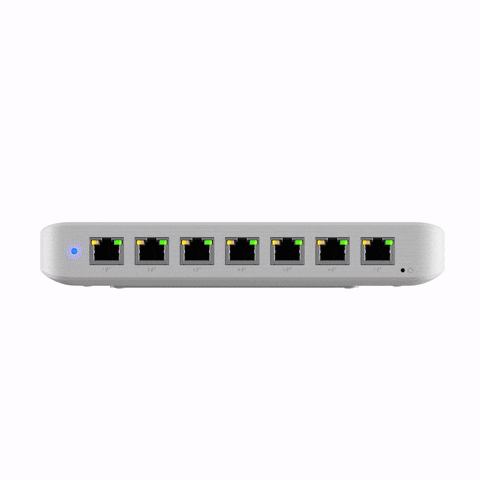

Ubiquiti Ultra 60W Layer 2, 8-port GbE PoE Switch with Versatile Mounting Options
- SKU: USW-Ultra-60W
- Manufacturer: Ubiquiti Networks
Product Information
Ubiquiti Networks USW-Ultra-60W
Ultra 60W Layer 2, 8-port GbE PoE Switch with Versatile Mounting Options
A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.

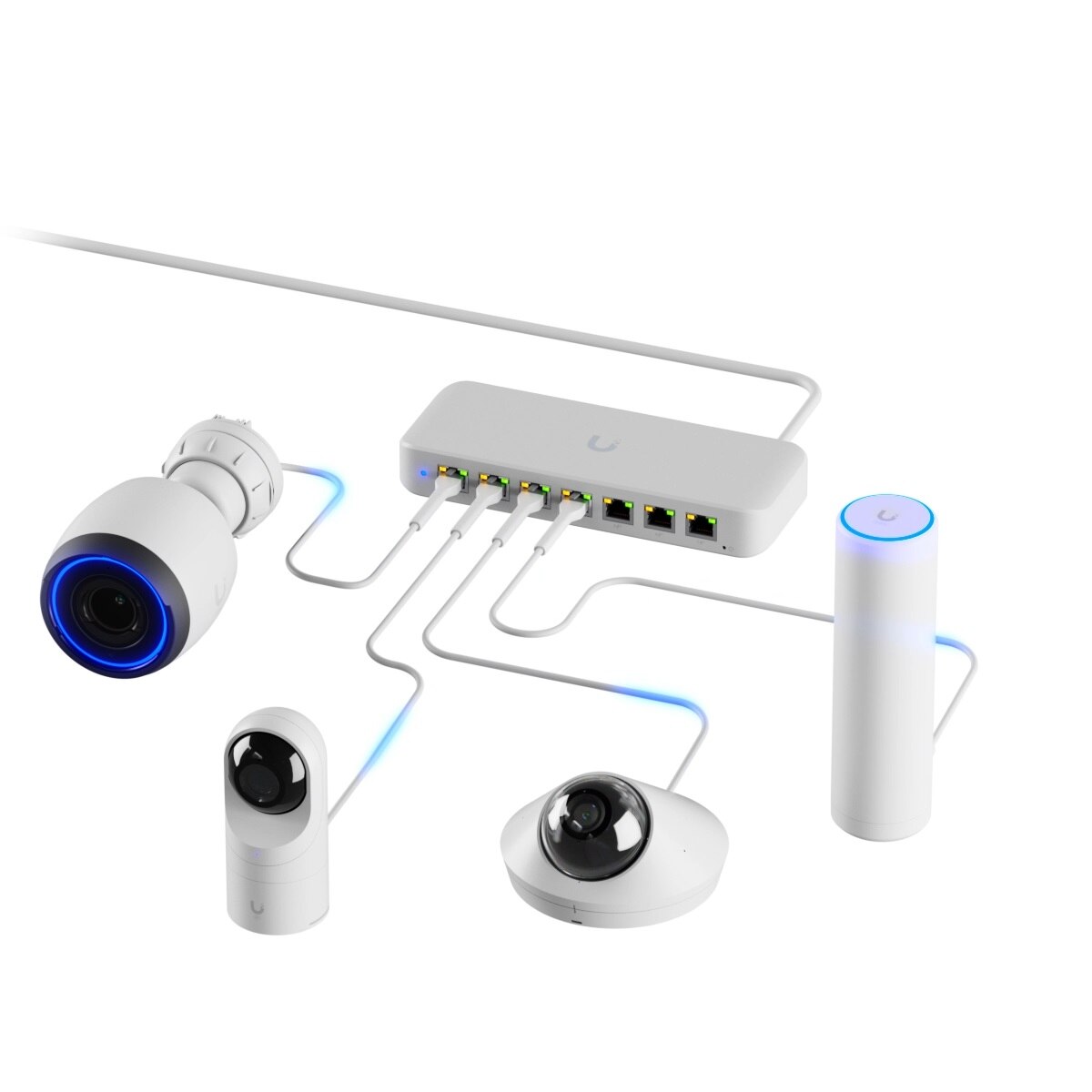

With a PoE budget of up to 52W and flexible power options, this switch provides unparalleled versatility for powering your network devices. Boasting seven GbE PoE+ output ports and one GbE PoE++ input port, along with a total non-blocking throughput of 8 Gbps, it ensures seamless data transmission in any environment.
With the USW-Ultra-60W, streamline your network management through a unified control plane. Its intuitive interface facilitates robust configuration, control, and monitoring, allowing for seamless operation. Benefit from remote firmware upgrades, ensuring your system remains up-to-date with the latest features and security patches. Whether managing users or guests, this switch offers comprehensive support, including guest portal and hotspot functionalities, enhancing network accessibility and security.
The compact and lightweight design of the USW-Ultra-60W makes it ideal for space-constrained environments without compromising on performance, providing an efficient solution for both small office spaces and larger enterprise networks alike.
Features:
- (7) GbE PoE+ output ports

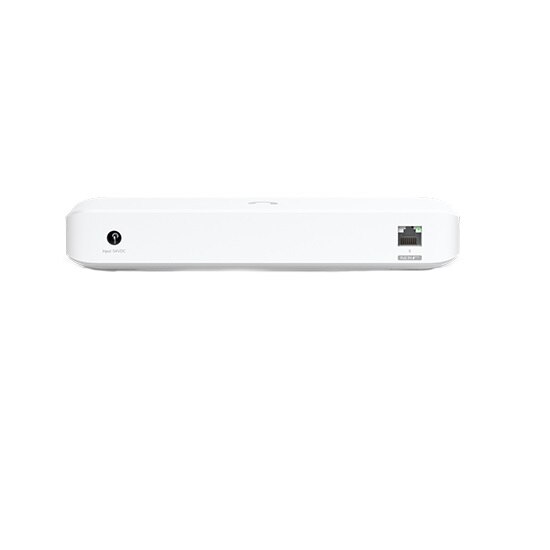

- (1) GbE port with optional PoE++ input*
- 52W PoE availability with the included AC power adapter
Specifications
Specifications USW-Ultra-60W
| Mechanical | |
| Dimensions | 203 x 76 x 33 mm (8" x 3" x 1.3") |
| Weight | Device: 320 g (11.3 oz) Wall mount: 45 g (1.6 oz) 60W adapter: 330 g (11.6 oz) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (8) GbE RJ45 ports |
| PoE interface | (7) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 8 Gbps |
| Switching capacity | 16 Gbps |
| Power method | (1) 54V, 1.1A power adapter (Included) PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-) |
| Power supply | 54V, external, 1.1A/60W |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 9W with PoE input (Excluding PoE output) 8W with AC adapter input (Excluding PoE output) |
| Total available PoE | PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202W* *At 45° C (113° F) operating temperature. Reduced to 161W (230V) or 121W (115V) at 60° C (140° F) |
| Max. PoE+ wattage per port by PSE | 30W |
| Button | Factory reset |
| Ambient operating temperature | PoE++ input: -30 to 60° C (-22 to 140° F) 60W AC adapter input: -20 to 45° C (-4 to 113° F) 210W AC adapter input: -20 to 60° C (-4 to 140° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | Port isolation Storm control Port mirroring Multicast / broadcast rate limiting Flow control Jumbo frames Egress rate limit |
| Layer 3 features | - |
| LEDs | |
| System | Status |
| Ethernet | PoE Link/activity |
| UniFi Network | Version 8.0.7 and later |
